Master Complex SIL Verification
Kenexis® Fault Tree is the fault tree analysis engine of the Kenexis Integrated Safety Suite — the next analytical step when a problem outgrows the simpler math upstream of it. Routine LOPA lives in Kenexis®Open-PHA® and routine SIL verification lives in our Kenexis® SIS (formerly Vertigo™) software, using the simplified equations of ISA TR84.00.02 Part 2. But when a scenario exceeds what LOPA can represent, or a SIF uses an architecture the standard equations cannot model, a fault tree is the defensible way to get the answer — and Kenexis® Fault Tree keeps that work on the same platform, sharing reliability data, SIF definitions, and LOPA scenarios with the rest of your Kenexis Integrated Safety Suite studies.

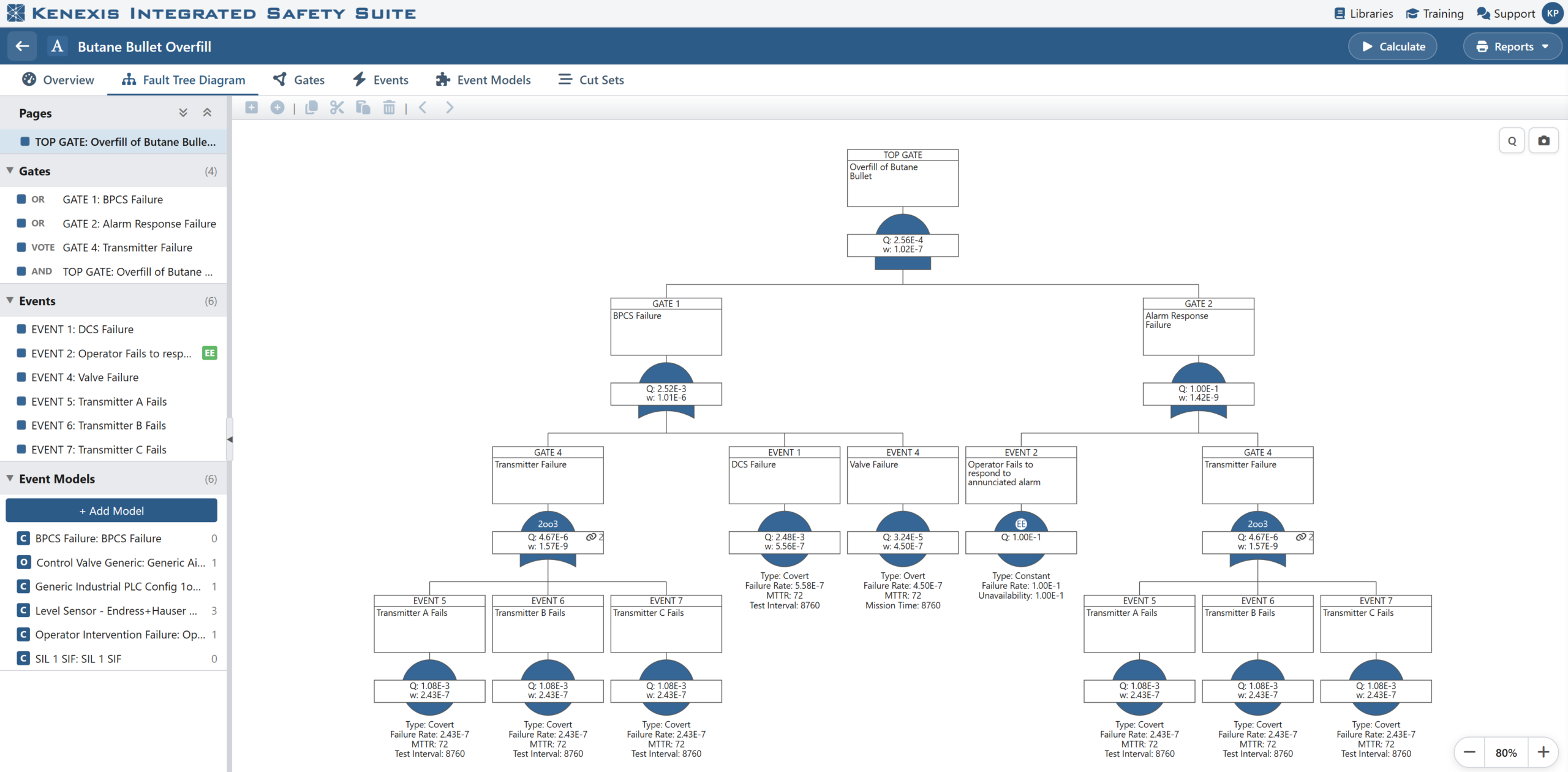

Kenexis® Fault Tree lets an SIS designer verify complex system designs quickly and easily for failure modes. Fault-tree results are easily linked to Safety Instrumented Functions in the Kenexis® SIS (formerly Vertigo™) tool.
- Quickly Identify Vulnerabilities in the System Design
- Instrumentation & Control Equipment Failure Rate Database
- SIS Lifecycle Management Integration for Complex SIL Verification Calculations
- Part of the Kenexis Integrated Safety Suite
Learn more:
Important Links:
Quickly Identify Vulnerabilities in System Design

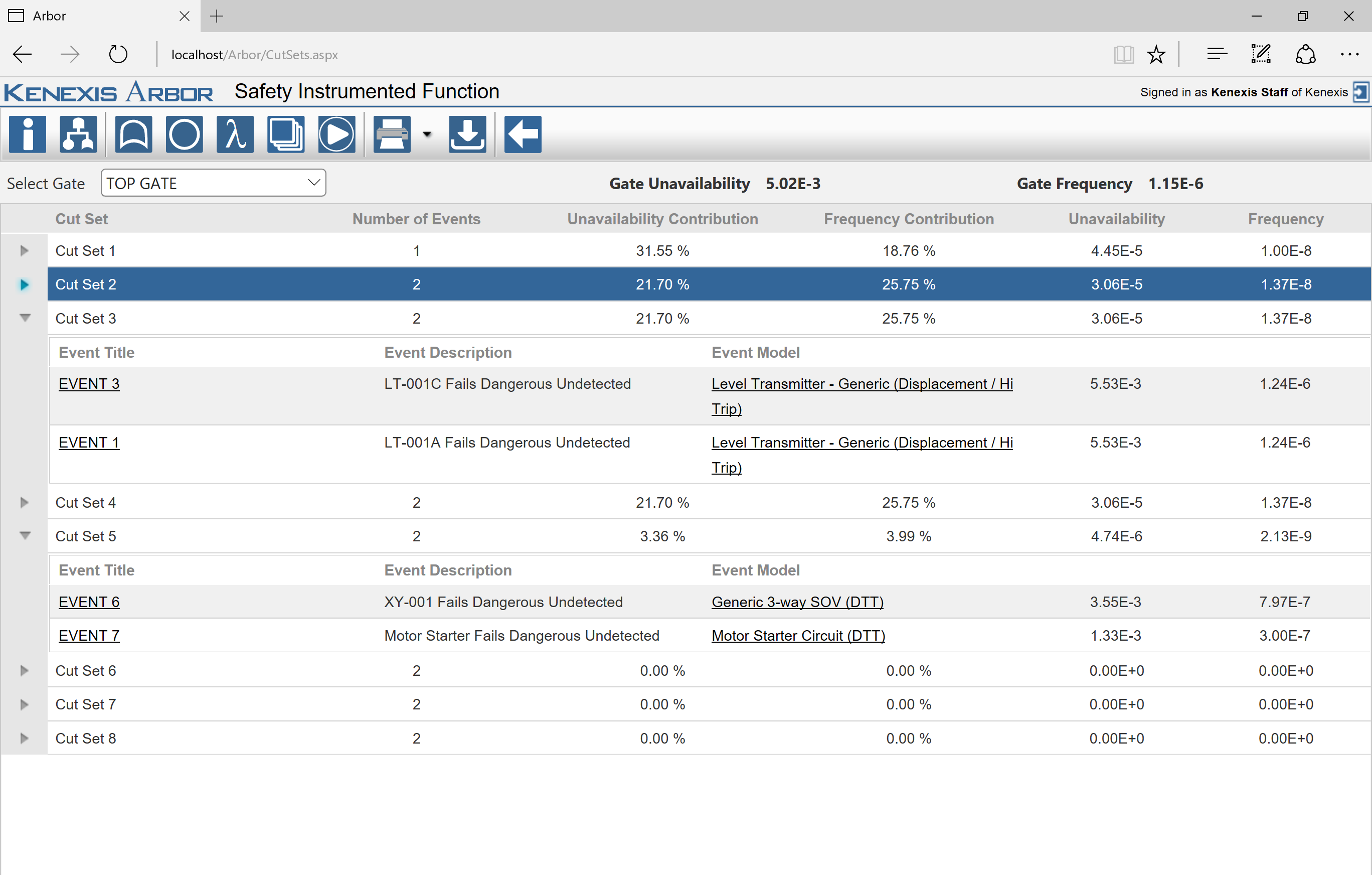

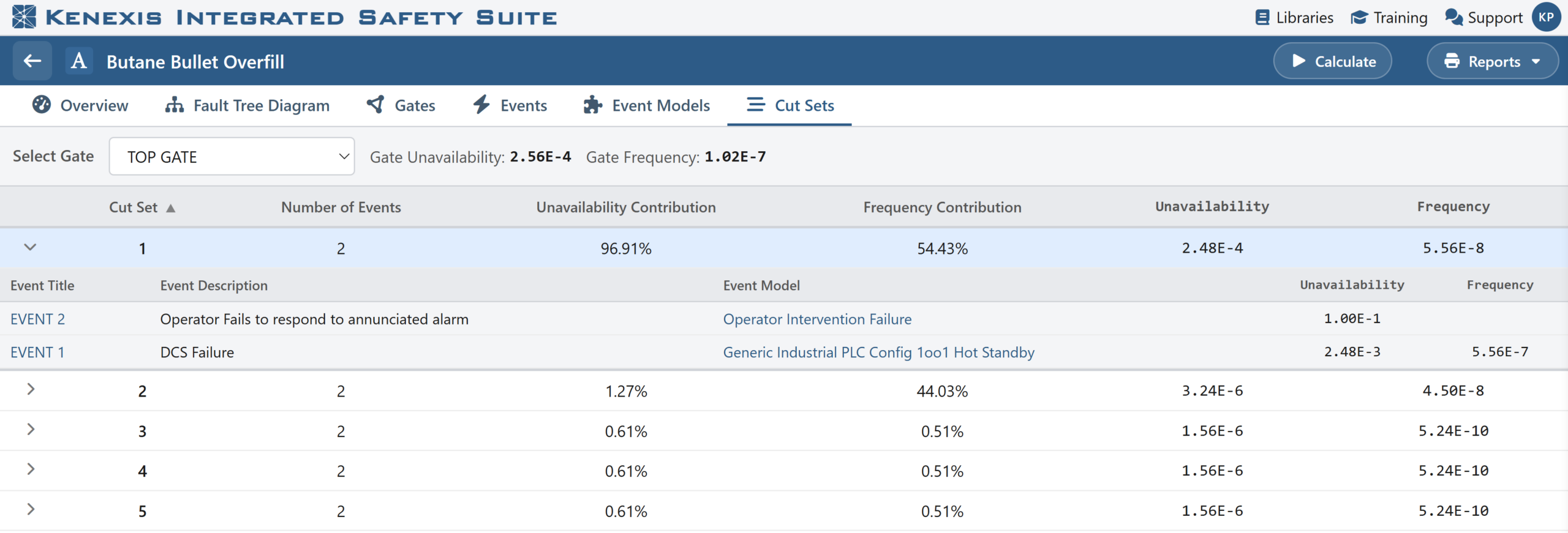

Robust minimum cut set analysis reporting makes it easy for users to quickly identify vulnerabilities in the system design by viewing details of the minimum cut set analysis through a clear and interactive interface. Provides valuable statistical analysis of the system highlighting the details of most significant combinations of events which could result in system failure which streamlines the process of sensitivity analysis and evaluation of alternative designs.
Access I&C Equipment Failure Rate Data

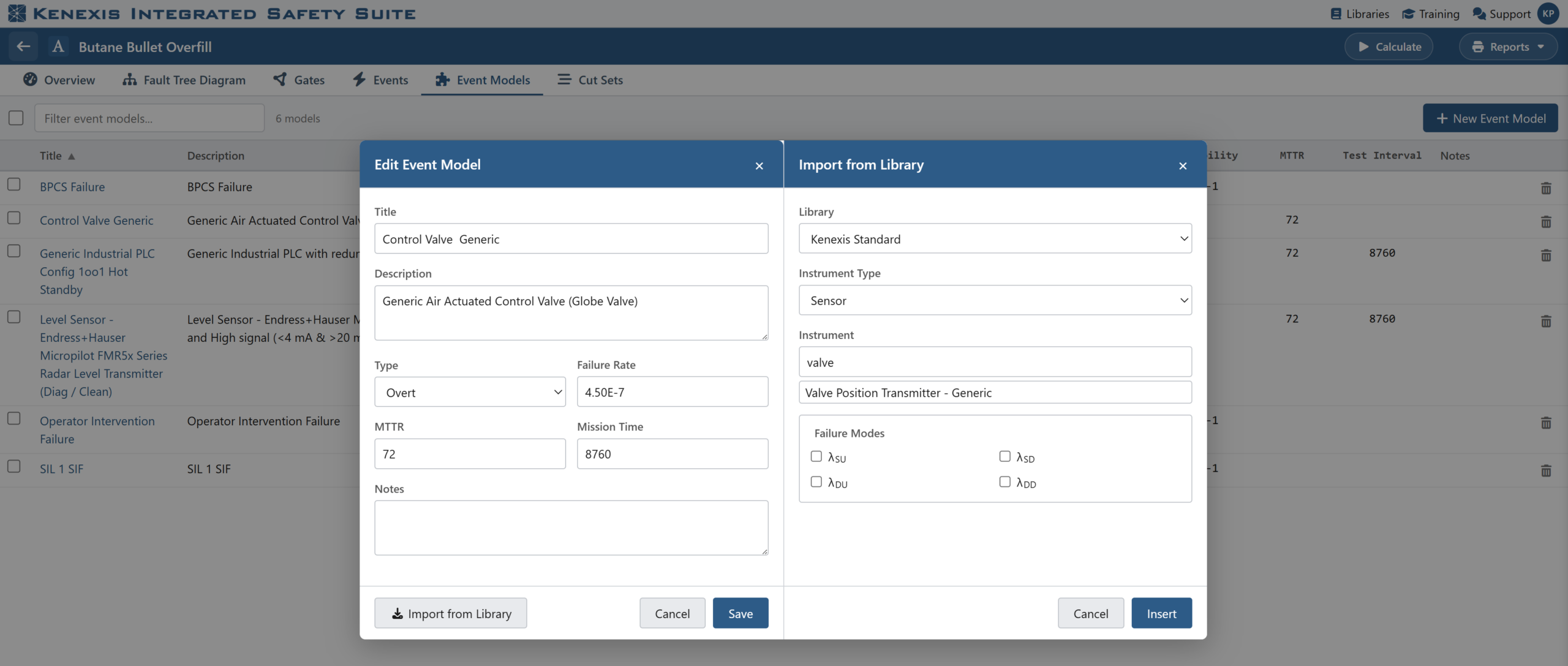

Kenexis extensive database of failure rate data for instrumentation and controls equipment comes with Kenexis® Fault Tree at no additional cost. Failure data is quickly found, processed, and applied in fault tree analysis, eliminating the time-consuming task of developing failure rate models for your fault trees. Our engineers use this data every day to perform a variety of process safety studies so you can be sure that the data has been well vetted and is always current.
What you can use Kenexis® Fault Tree for?
The same fault tree engine answers four kinds of high-consequence question that the simpler methods cannot. Risk analysis beyond LOPA: when independent-protection-layer assumptions break down, protection layers share components, or a scenario has dependencies LOPA’s one-credit-per-layer structure cannot capture, a fault tree models the real reliability topology. Resolving unworkable LOPA recommendations: LOPA’s conservatism often forces an over-specified SIF or a costly extra protection layer — a fault tree can replace that with a defensible quantitative argument an auditor or FSA reviewer can validate. SIL verification beyond standard equations: non-standard voting, equipment diversity inside a voted arrangement, or shared components across SIFs need a fault tree rather than the simplified equations. Quantitative Risk Assessment and reliability: fault trees quantify the frequency side of QRA for capital projects and Seveso facilities, and support reliability/RAM modeling — sizing redundancy, comparing architectures, and informing inspection and maintenance strategy.
Enterprise-grade and secure
Kenexis® Fault Tree runs on the Kenexis Integrated Safety Suite cloud platform, built to conform with ISO/IEC 27001 and hosted on Microsoft Azure (US East primary, US West failover), with encryption in transit and at rest, role-based access controls, per-tenant data isolation, comprehensive audit logging, and tested backup and recovery. Cloud delivery also means every practitioner is on the current version — so a model built today still opens cleanly years later when it is reopened for a revalidation, an FSA, or a post-incident review.
Trial Request
System requirements – requires a browser on Mac, Linux, or Windows platform.
Click here to request a free 30-day evaluation of Kenexis® Fault Tree
Pricing
Kenexis® Fault Tree is a cloud-based fault-tree analysis tool that includes access to Kenexis’s extensive database of failure rate data for instrumentation and controls equipment as part of the Integrated Safety Suite. A single concurrent-user license is $1,450 USD/year*.
*Prices shown apply to the United States, Canada and Europe. Prices in other regions may vary.
Visit our online store to buy now or explore Process Safety Software Bundle pricing. If needed, please contact Kenexis for a proposal.
